중고 A-Tex Ultrajet DPM-4H-18 원단 디지털 프린터 8색 + 원단 건조기

Model : DPM1800-4H; DPM2600-4H; DPM3200-4H

Print head : 4 pcs of piezo head

Color combination : 4 or 8 color combination

Greyscale : 3 level greyscale

Carriage speed : 400mm/sec

Printing width : 1800mm; 2600mm; 3200mm

Blanket width : 1835mm; 2635mm; 3235mm

Ink type : Textile reactive, acid, disperse and pigment ink

Ink supply : 2L bottle with tube pump and filter, 32 channels

Ink buffer : Negative pressure with secondary buffer module

Ink system : Left and right supply

Ink indication : On display panel

Head cleaning : By individual suction cleaning station

Wiper : Rotation wiper

Interface : USB 2.0

Entry : Up to 100m anti-wrinkle and tension adjustment

Material feed : Adhesive blanket with rubberized pressing roller by pneumatic control

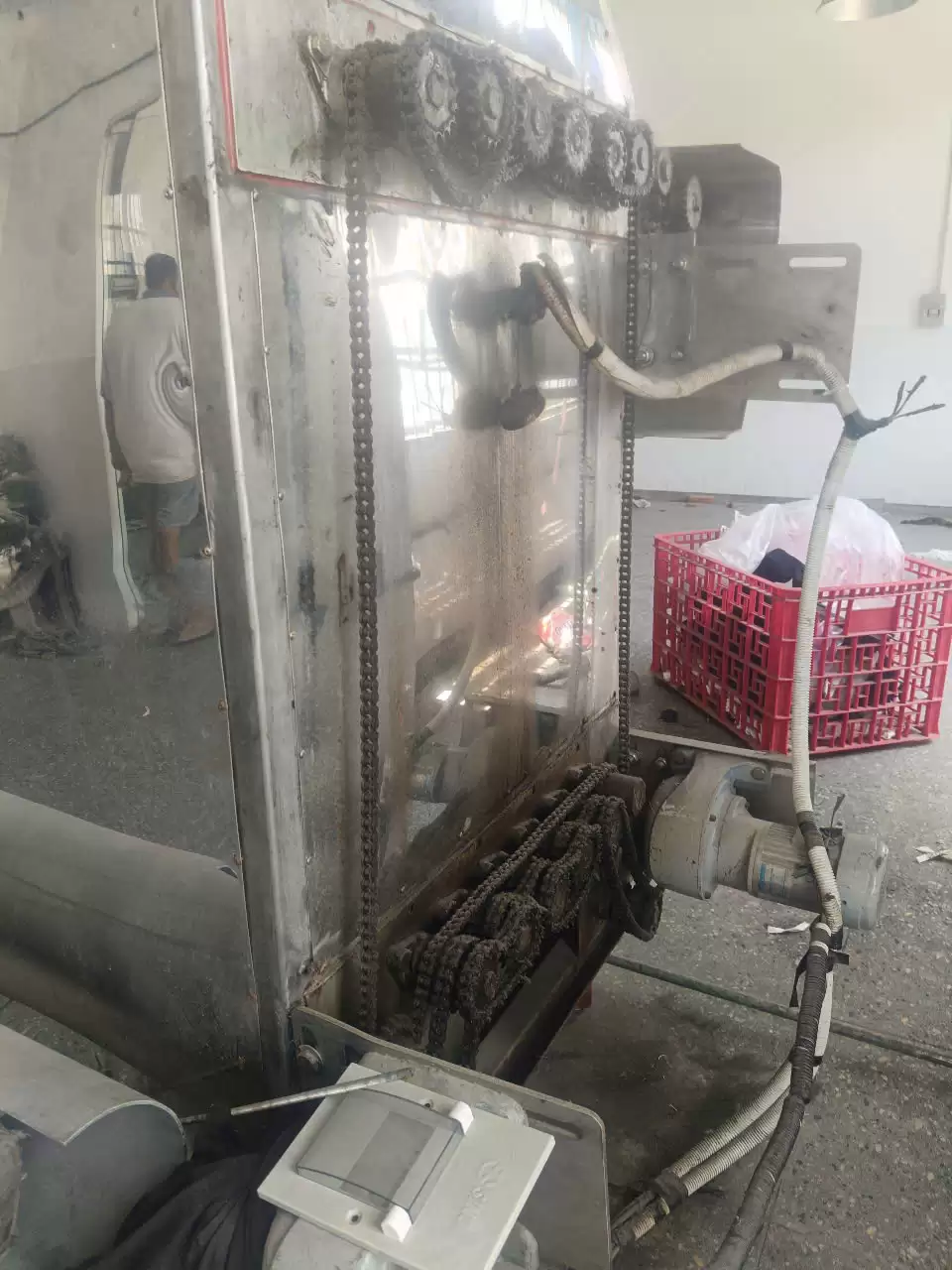

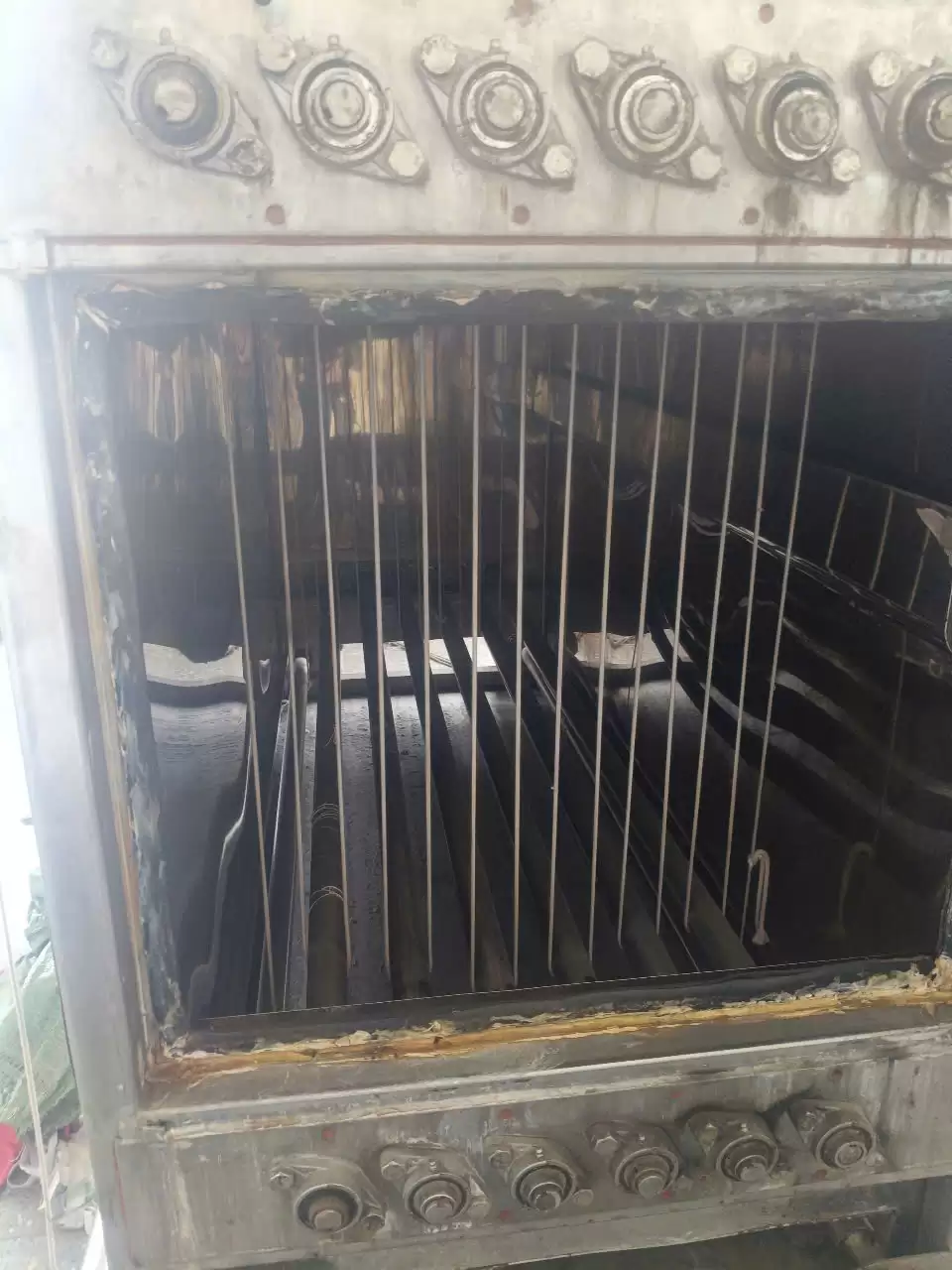

Dryer : Up to 50oC, PTC heater

Display : Touch screen

Control : Motherboard to PLC

Drive : Servo drive on both X & Y axis

Transmission : SUS belt with crowning pulley

Side track : Auto adjusted by sensor detection 5mm allowance

Belt cleaning : Build in washing unit with sponge roller, 40L water tank

RIP : A-Tex RIP with Ultrajet DPM-4H driver

Electronic : Multi-layer mother board, USB and firing board

Electrical : 415VAC, +/-10%, 50Hz / 60Hz

Resolution : 720x180dpi, 720x360dpi, 720x540dpi, 720x720dpi, 720x1440dpi, 720x2880dpi

Passes : 1, 2, 3, 4, 8, 16 passes

Speed (m2/hr) & mode* : 90 (draft mode), 45 (production mode), 30 (high quality mode), 22 (fine mode), 11 (super fine mode), 6 (ultra fine mode)

Capacity (m2/hr)* : 10 up to 45m2/hr

Operating environment : 25°C with 65-75% humidity

Compressed air : 6 bar (supply by buyer)

Structure : Robust design; State of art

* 8 color mode

* Figure may change according to print environment setting
